Mercury 225XL FourStroke^® Cold Fusion DTS

Name: Mercury 225XL FourStroke® Cold Fusion DTS For Sale | Alberni Power & Marine - RPM Group
Brand: Mercury Outboard
SKU: ME225XLDTSCV6
Price: 31560 CAD
Availability: PreOrder

BEST PRICE

MPN#: 12250014A

SKU#: ME225XLDTSCV6

MSRP: CA$41,525.00 NOW CA$31,560.00 GET EXCLUSIVE SAVINGS! REACH OUT TODAY FOR A PERSONALIZED QUOTE.

Model:

225XL FourStroke® Cold Fusion DTS

Availability: Available to Order
Program Year: 2026
Condition: New
Location: Port Alberni, BC Canada

Apply for Financing

Go with 5 Years Factory Backed Limited Coverage!

Purchase this Mercury outboard model and get a total of 5 years of Mercury factory-backed limited coverage! In addition to the standard 3-year warranty, you will also receive a 2-year Mercury Product Protection Gold plan!

Horsepower

225

Cylinder

V6

Shaft Length

25"

C.A.R.B Star Rating

3 - Ultra Low Emission

QUICKEST ACCELERATION

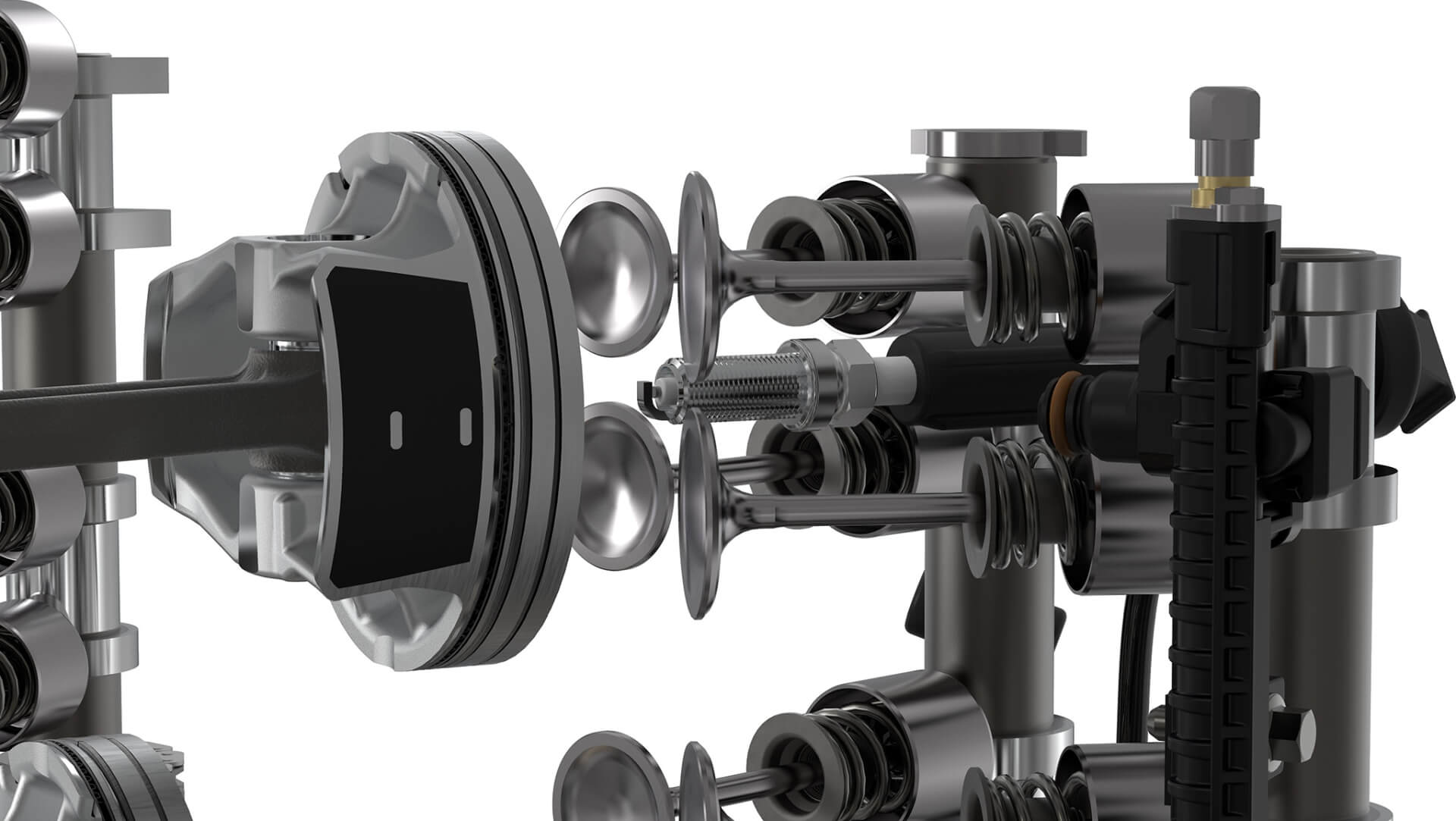

The high-displacement, quad-cam design of the new V6 powerheads generates plenty of torque, especially at mid-range. Combine ample power with lightest-in-class weight from 225hp, and the result is exhilarating performance.

QUICKEST ACCELERATION

HIGHEST DISPLACEMENT IN ITS CLASS

The new V6 225hp FourStroke boasts class-leading 3.4L displacement.

The additional cylinders and greater displacement are delivered in a compact package with 26-inch mounting centers, providing maximum compatibility in repower and multi-engine applications.

HIGHEST DISPLACEMENT IN ITS CLASS

The new V6 225hp FourStroke boasts class-leading 3.4L displacement.

The additional cylinders and greater displacement are delivered in a compact package with 26-inch mounting centers, providing maximum compatibility in repower and multi-engine applications.

LIGHTEST OUTBOARD IN ITS CLASS

Every component has been engineered to meet stringent standards at the absolute minimum weight, making the 3.4L V6 FourStroke the lightest outboard in its class by more than 10 pounds.

LIGHTEST OUTBOARD IN ITS CLASS

Every component has been engineered to meet stringent standards at the absolute minimum weight, making the 3.4L V6 FourStroke the lightest outboard in its class by more than 10 pounds.

NOISE MANAGEMENT - COWL SEALING SYSTEM

Tuned multi-chamber air intake minimizes airborne noise
Fuel injector covers reduce high-frequency noise
Multi-chamber idle relief system tuned to provide lowest idle noise
Multiple sealing features prevent engine noise from escaping the cowl and keep moisture out

NOISE MANAGEMENT - COWL SEALING SYSTEM

Tuned multi-chamber air intake minimizes airborne noise
Fuel injector covers reduce high-frequency noise
Multi-chamber idle relief system tuned to provide lowest idle noise
Multiple sealing features prevent engine noise from escaping the cowl and keep moisture out

EASY ACCESS - MAINTENANCE

A Top Cowl Service Door, an industry-exclusive, simplifies routine maintenance with easy oil checks and oil fills without removing the cowl. The Top Cowl Service Door also houses the latch release and a carrying handle.

EASY ACCESS - MAINTENANCE

ACTIVE TRIM - SOLD SEPARATE

Active Trim is an integrated GPS, speed-based automatic engine trim system. This intuitive, hands-free system continually adjusts engine trim based on changes in boat speed to improve performance, fuel economy and ease of operation.

Please ask our sales staff for Active Trim!

ACTIVE TRIM - SOLD SEPARATE

Please ask our sales staff for Active Trim!

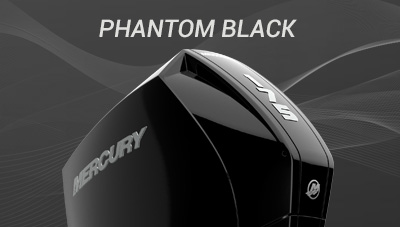

4 OPTIONAL ENGINE COLORS

Mercury’s three shades of white – Pearl Fusion White, Cold Fusion White and Warm Fusion White – and traditional Phantom Black are available on the new 200-300hp FourStroke outboards.

Available as a built to order or certain models are available shortly.

4 OPTIONAL ENGINE COLORS

Mercury’s three shades of white – Pearl Fusion White, Cold Fusion White and Warm Fusion White – and traditional Phantom Black are available on the new 200-300hp FourStroke outboards.

Available as a built to order or certain models are available shortly.

4 Panel Color Options

Rear Gray
Rear Silver
Rear Red
Rear Blue

Please ask our sales staff for Color Panel Options!

4 Panel Color Options

Rear Gray
Rear Silver
Rear Red
Rear Blue

Please ask our sales staff for Color Panel Options!

Horsepower: 225
Engine type: V6
Displacement (CID/CC): 209 CID
Displacement (L): 3.4
Cylinder Configuration: V-6 [64 degree] with Dual Overhead Cam [DOHC] and 24-valves
Bore and stroke: 3.6 in x 3.4 in / 92 mm x 86 mm
Full throttle RPM: 5200-6000
Shaft length: 25 "
Gearcase ratio: 1.85:1
Alternator amp / Watt: 85-amp (1071 Watt) with Idle Charge
Maximum Trim Range: 20° (-6° to 14°)
Maximum Tilt Range: 73° (-6° to 67°)
Dry weight: 475 (Lightest model available) lbs
Gearcase: 4.8"

Mid Section: Conventional MidSection
Air induction: Performance-Tuned Long-Runner Intake Manifold
Engine protection operator warning system: SmartCraft Engine Guardian
Compatible with SmartCraft digital technology (DTS ): Yes
Starting: Electric Start with SmartStart Protection
Controls: Digital Throttle & Shift (DTS) (sold separately)
Steering: Hydraulic (optional), Power (optional), Joystick Piloting for Outboards Power (optional)
Fuel induction system: Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization
Ignition: SmartCraft PCM 112 Digital Inductive
Lubrication system: Integrated wet sump
Cooling system: Water-cooled with thermostat
Gear shift: F-N-R
Trim system: Power Trim & Tilt
Exhaust system: Through prop

More Specs

Recommended fuel: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil: NMMA Certified FCW SAE 25W-40 (Optional 10W-30 for Cold Conditions)
Oil Capacity: 7.0 Quarts / 6.6 Liters

Equipment

Please ask our sales staff for a propeller that fits the best to your needs!

Propeller: not included

Color: Cold Fusion White

Warranty & APM Guarantee

Standard Warranty: Mercury 3 Year Limited Standard Warranty
Extended Warranty: 2-Year Mercury Product Protection Gold Plan

Additional Services and Costs

RPM Group Re-Powering Services - contact us for a quote!

Professional Offshore Experiences

You will benefit from our 20 years of re-powering experience on your boat - the same as we do for professional heavy users, such as Commercial Fishermen, Whale Watching Tour Operators, Fishing Charters and Sports Fishermen too - on extreme Vancouver Island Westcoast conditions – day by day!

Total Cost of Ownership (TCO) focused Re-Powering

We design re-powering to accommodate your individual requirements while keeping the engine configurations sustainable, so that your engine RPM stays mainly in the middle range while retaining an excellent boat performance – with optimized configuration of HP, Propeller, Pitch to your boat measurements. This ensures the most economical operating cost for your individual boat specifications and style of boating.

General Service

Pre Delivery Inspection - PDI
Water Testing - 100% ready for operation!
