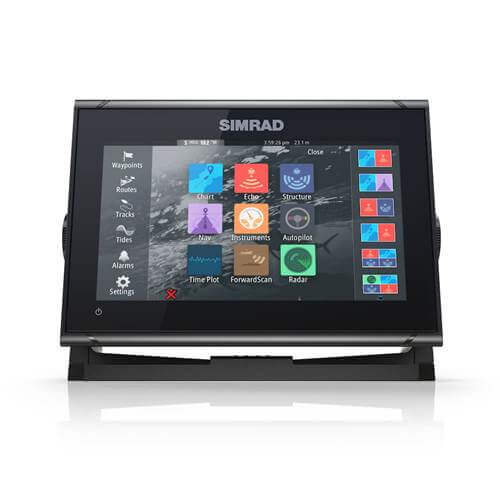

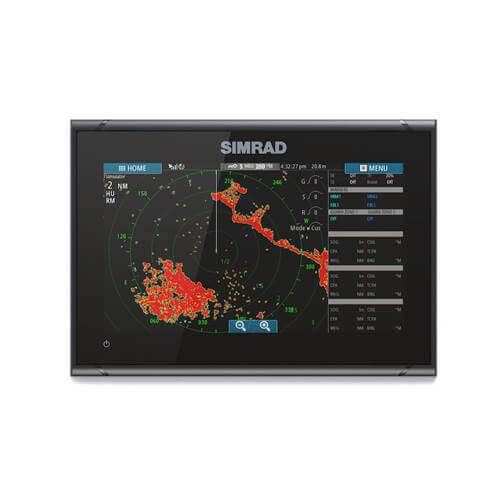

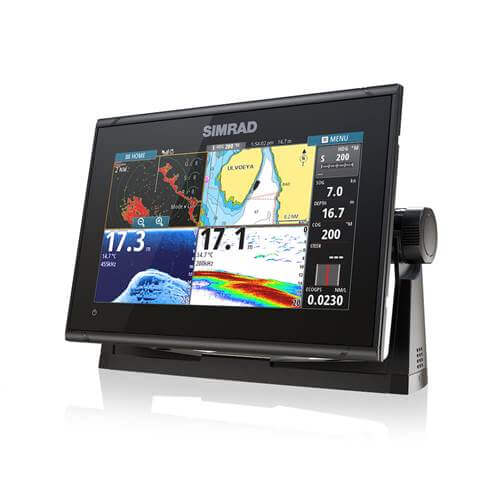

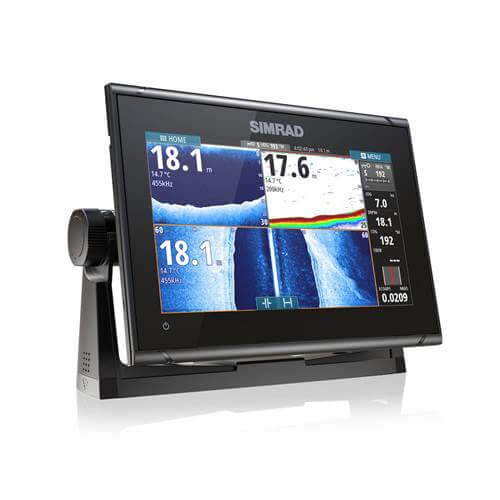

Simrad GO9 XSE with Basemap




Availability: Sold
Hull Length: 12-inch widescreen'
Condition: New
OEM Part#: 000-13210-001
Get more from every day on the water
Simrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to smaller sportboats, dayboats, and center-consoles. Behind every super-bright GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry standard NMEA 2000® networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar support to cruise with confidence or fish like a pro. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality while you’re out on the water.
Add GPS navigation, sonar support, radar capability, and much more to your boat with the GO9 XSE: perfect for sportboats, center-consoles, and smaller cruisers. Enjoy intuitive touchscreen control over a multitude of optional accessories, from autopilot to your on-board sound system. Take your display anywhere on board with wireless mirroring to smartphones and tablets.
9 "
6000
90MB
Insight
- Widescreen display with bright LED backlight
- Easy to use with simple, tablet-style touchscreen controls
- Compatible with Broadband 3G™/4G™ and Halo™ radar (GO7 and above)
- Supports a wide range of charts from C-MAP and more
- View and control your display from a compatible smartphone or tablet
- Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
- Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
- Widescreen display with bright LED backlight
- Easy to use with simple, tablet-style touchscreen controls
- Compatible with Broadband 3G™/4G™ and Halo™ radar (GO7 and above)
- Supports a wide range of charts from C-MAP and more
- View and control your display from a compatible smartphone or tablet
- Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
- Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
- Operating Temperature Range: “-15°C to +55°C (5° F to 131° F)
- Storage Temperature Range: “-20°C to +60°C (4°F to 140°F)
- Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 - 17 V DC
- Update rate: 10 Hz
- Power Consumption typical: 12 W
- Screen Brightness: 1200 nits
- SD Card Storage; 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS
- Power Consumption max: 20 W
- GPS Receiver Channels: 32 Channels
- Recommended Fuse Rating: 3A
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Viewing Angles: 80° top/bottom, 80° left/right
- Display Resolution: 800x480
- Internal Storage: 90MB
- Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Digital Switching: BEP C-Zone
- Mounting Type: Bracket or Panel
- Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
- Radar compatibility: Halo, Broadband, HD Radars
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
- Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
- Item Connectivity WiFi: Internal
- Bluetooth: Internal
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Waterproofrating: IPX 6 and 7
- PC Connectivity: None
- Video: None
- AIS: Receive AIS data over NMEA 2000 only
- N2K PGNs: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only), GRIB
- Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Cartography included: TBD
- Interface: Touch screen, OP40 or OP50 controller via NEA 2000
- Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Correction: WASS, MSAS, EGNOS, GLONASS
- Backlight Color: White
- Operating Temperature Range: “-15°C to +55°C (5° F to 131° F)
- Storage Temperature Range: “-20°C to +60°C (4°F to 140°F)
- Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 - 17 V DC
- Update rate: 10 Hz
- Power Consumption typical: 12 W
- Screen Brightness: 1200 nits
- SD Card Storage; 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS
- Power Consumption max: 20 W
- GPS Receiver Channels: 32 Channels
- Recommended Fuse Rating: 3A
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Viewing Angles: 80° top/bottom, 80° left/right
- Display Resolution: 800x480
- Internal Storage: 90MB
- Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Digital Switching: BEP C-Zone
- Mounting Type: Bracket or Panel
- Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
- Radar compatibility: Halo, Broadband, HD Radars
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
- Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
- Item Connectivity WiFi: Internal
- Bluetooth: Internal
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Waterproofrating: IPX 6 and 7
- PC Connectivity: None
- Video: None
- AIS: Receive AIS data over NMEA 2000 only
- N2K PGNs: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only), GRIB
- Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Cartography included: TBD
- Interface: Touch screen, OP40 or OP50 controller via NEA 2000
- Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Correction: WASS, MSAS, EGNOS, GLONASS
- Backlight Color: White
- Size: 9 " widescreen
- Resolution: 800x480
- Dimensions (L x W x H): 243 mm x 171 mm x 83 mm
- Net Weight: 1.315 kg (2.9 lbs)
- Widescreen display with bright LED backlight
- Easy to use with simple, tablet-style touchscreen controls
- Compatible with Broadband 3G™/4G™ and Halo™ radar (GO7 and above)
- Supports a wide range of charts from C-MAP and more
- View and control your display from a compatible smartphone or tablet
- Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
- Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
- Widescreen display with bright LED backlight
- Easy to use with simple, tablet-style touchscreen controls
- Compatible with Broadband 3G™/4G™ and Halo™ radar (GO7 and above)
- Supports a wide range of charts from C-MAP and more
- View and control your display from a compatible smartphone or tablet
- Built-in support for CHIRP sonar, StructureScan® HD imaging, or ForwardScan™ sonar: just add a compatible transducer
- Works with the WM-3 SiriusXM satellite weather module (GO7 and above, North America only)
- Size: 9 " widescreen
- Resolution: 800x480
- Dimensions (L x W x H): 243 mm x 171 mm x 83 mm
- Net Weight: 1.315 kg (2.9 lbs)
- Operating Temperature Range: “-15°C to +55°C (5° F to 131° F)
- Storage Temperature Range: “-20°C to +60°C (4°F to 140°F)
- Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 - 17 V DC
- Update rate: 10 Hz
- Power Consumption typical: 12 W
- Screen Brightness: 1200 nits
- SD Card Storage; 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS
- Power Consumption max: 20 W
- GPS Receiver Channels: 32 Channels
- Recommended Fuse Rating: 3A
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Viewing Angles: 80° top/bottom, 80° left/right
- Display Resolution: 800x480
- Internal Storage: 90MB
- Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Digital Switching: BEP C-Zone
- Mounting Type: Bracket or Panel
- Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
- Radar compatibility: Halo, Broadband, HD Radars
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
- Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
- Item Connectivity WiFi: Internal
- Bluetooth: Internal
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Waterproofrating: IPX 6 and 7
- PC Connectivity: None
- Video: None
- AIS: Receive AIS data over NMEA 2000 only
- N2K PGNs: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only), GRIB
- Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Cartography included: TBD
- Interface: Touch screen, OP40 or OP50 controller via NEA 2000
- Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Correction: WASS, MSAS, EGNOS, GLONASS
- Backlight Color: White
- Operating Temperature Range: “-15°C to +55°C (5° F to 131° F)
- Storage Temperature Range: “-20°C to +60°C (4°F to 140°F)
- Ethernet Ports: 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
- NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
- Supply Voltage: 10 - 17 V DC
- Update rate: 10 Hz
- Power Consumption typical: 12 W
- Screen Brightness: 1200 nits
- SD Card Storage; 2 Micro SD slots, max. 32GB each. >32 GB format to NTFS
- Power Consumption max: 20 W
- GPS Receiver Channels: 32 Channels
- Recommended Fuse Rating: 3A
- Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
- Viewing Angles: 80° top/bottom, 80° left/right
- Display Resolution: 800x480
- Internal Storage: 90MB
- Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
- Autopilot: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
- Digital Switching: BEP C-Zone
- Mounting Type: Bracket or Panel
- Approvals Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Shock Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
- Time to First Fix: Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
- NMEA 0183 Sentences supported: Exports NMEA0183 over WiFi
- Radar compatibility: Halo, Broadband, HD Radars
- Position Accuracy: Horizontal Accuracy 3 m (9.8 ft.)
- Charts supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
- Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
- Item Connectivity WiFi: Internal
- Bluetooth: Internal
- GPS: Internal, 10Hz, WASS, MSAS, EGNOS
- Waterproofrating: IPX 6 and 7
- PC Connectivity: None
- Video: None
- AIS: Receive AIS data over NMEA 2000 only
- N2K PGNs: Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only), GRIB
- Languages: Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian
- Cartography included: TBD
- Interface: Touch screen, OP40 or OP50 controller via NEA 2000
- Manouevres Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
- Multimedia: via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
- Correction: WASS, MSAS, EGNOS, GLONASS
- Backlight Color: White
- Size: 9 " widescreen
- Resolution: 800x480
- Dimensions (L x W x H): 243 mm x 171 mm x 83 mm
- Net Weight: 1.315 kg (2.9 lbs)
- Standard Warranty: 2 years
Alberni Power & Marine and Alberni Industrial Marine Supply Ltd. to be referred as APM is not responsible for, and expressly disclaims all liability for, damages of any kind arising out of use, reference to, or reliance on any information contained within the website, while the information contained within the site is periodically updated no guarantee is given that the information provided in this website is correct, complete, and up-to-date.
Product information is based on material received from suppliers. APM is very eager to provide to all clients a verification of its website content.

Availability: Sold
Condition: New
Item#: 000-13210-001
Request a Quote

Request By Phone
Alberni Power & Marine
a member of RPM Group
Address: 3170 1st Ave N, Port Alberni, BC V9Y 4C2, Canada
