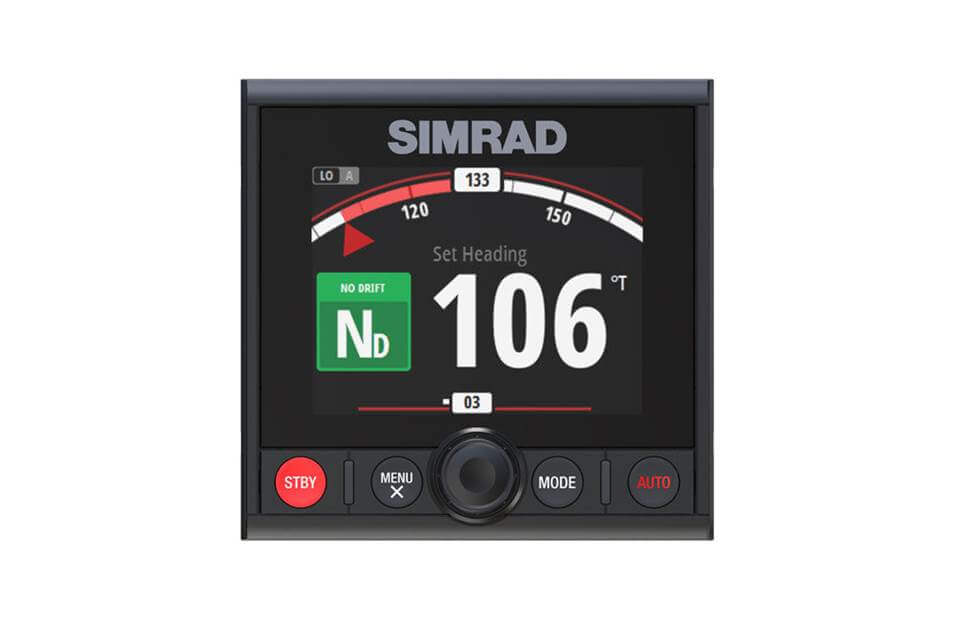

Simrad AP44 Autopilot Controller

- Optically bonded 4.1-inch colour display
- Simple autopilot control with rotary dial and keypad
- Automated turn patterns for fuel-efficient, hands-free manoeuvres
- No Drift steering holds your course against wind and tide
- Depth contour tracking makes it easy to fish ledges and drop-offs
- Easy setup with auto tuning and calibration
- Low-profile glass helm design
- Low power consumption
- Optically bonded 4.1-inch colour display
- Simple autopilot control with rotary dial and keypad
- Automated turn patterns for fuel-efficient, hands-free manoeuvres
- No Drift steering holds your course against wind and tide
- Depth contour tracking makes it easy to fish ledges and drop-offs
- Easy setup with auto tuning and calibration
- Low-profile glass helm design
- Low power consumption
- NMEA 2000 Connectivity: 1 X NMEA2000 Micro-C port 3 LEN
- Power Consumption typical: 1,35W
- Power Consumption max: 1,8W
- Supply Voltage: 12V DC (10,8-15,6V DC)
- Operating Temperature Range: -25° to +65ºC (-13°F to +149 ºF)
- Compass Safe: 300MM (11,8")
- Storage Temperature Range: -40° to +85ºC (-40°F to +185 ºF)
- Screen Brightness: 600 nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Approvals Compliance: CE 60945
- Manouevres Turn Patterns: C-turn, U-turn, Spiral, Zigzag, Square, S-turn, Depth countertracking, Tack, Gybe
- Languages: English(US), English(UK), Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Brazilian, Swedish, Afrikaans, Japanese, Korean, Simplified Chinese, Traditional Chinese, Bulgarian, Hebrew, Hungarian, Slovak, Russian, Ukrainian
- Mounting Type: Flush
- Steering Modes: Heading, No drift, Waypoint Steering(NAV), Wind, Power Steer(FU)
- Waterproofrating: IPx7
- Interface: Keypad and rotary dial
- Compasssensor support: NMEA 2000
- Humidity: Up to 100% RH
- Engine Drive systems integration: Volvo EVC, Yamaha, Optimus(Seastar)
- Backlight Color: White
- NMEA 2000 Connectivity: 1 X NMEA2000 Micro-C port 3 LEN
- Power Consumption typical: 1,35W
- Power Consumption max: 1,8W
- Supply Voltage: 12V DC (10,8-15,6V DC)
- Operating Temperature Range: -25° to +65ºC (-13°F to +149 ºF)
- Compass Safe: 300MM (11,8")
- Storage Temperature Range: -40° to +85ºC (-40°F to +185 ºF)
- Screen Brightness: 600 nits
- Viewing Angles: 80° top/bottom, 80° left/right
- Approvals Compliance: CE 60945
- Manouevres Turn Patterns: C-turn, U-turn, Spiral, Zigzag, Square, S-turn, Depth countertracking, Tack, Gybe
- Languages: English(US), English(UK), Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Brazilian, Swedish, Afrikaans, Japanese, Korean, Simplified Chinese, Traditional Chinese, Bulgarian, Hebrew, Hungarian, Slovak, Russian, Ukrainian
- Mounting Type: Flush
- Steering Modes: Heading, No drift, Waypoint Steering(NAV), Wind, Power Steer(FU)
- Waterproofrating: IPx7
- Interface: Keypad and rotary dial
- Compasssensor support: NMEA 2000
- Humidity: Up to 100% RH
- Engine Drive systems integration: Volvo EVC, Yamaha, Optimus(Seastar)
- Backlight Color: White
- Size: 4.1 "
- Resolution: 320 x 240, 4:3
- Dimensions (L x W x H): 118 x 115 x 48,5mm
- Net Weight: 0.32 kg (0.7 lbs)
- Standard Warranty: 2 Years
Alberni Power & Marine and Alberni Industrial Marine Supply Ltd. to be referred as APM is not responsible for, and expressly disclaims all liability for, damages of any kind arising out of use, reference to, or reliance on any information contained within the website, while the information contained within the site is periodically updated no guarantee is given that the information provided in this website is correct, complete, and up-to-date.
Product information is based on material received from suppliers. APM is very eager to provide to all clients a verification of its website content.
NOW CA$955.55 Limited Stock!
AP44 Autopilot Controller
Availability:
Few in stock
Condition:
New
MPN#:
000-13289-001
Location:
Port Alberni, BC Canada
