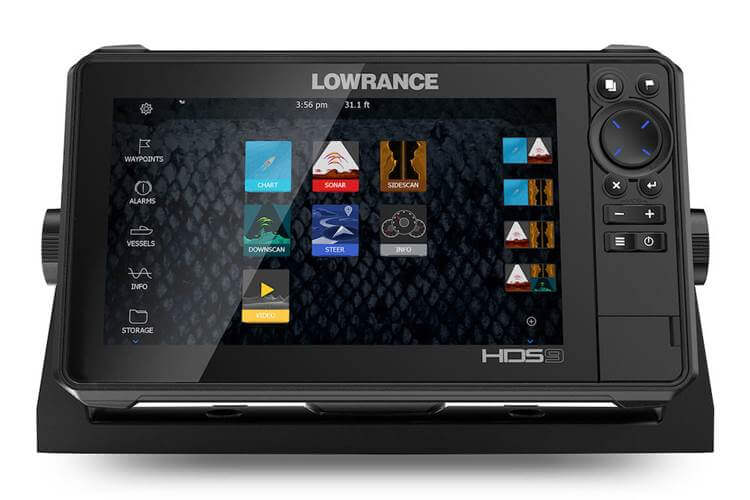

Lowrance HDS-9 LIVE with No Transducer
OEM Part#: 000-14421-001
Stock#: 000-14421-001
NOW $1,599.00
Limited Stock!
Model:
HDS-9 LIVE with No Transducer
Availability: In stock
Condition:
New
OEM Part#: 000-14421-001
Location:
Port Alberni, BC Canada
Screen Size
9 "
Waypoints
3000
Internal Storage
8.0 GB
Charts supported
C-MAP
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
*Transducer sold separately **HDS LIVE 16/12 only
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
*Transducer sold separately **HDS LIVE 16/12 only
- Screen Brightness: >1200 Nits
- Update rate: 10 Hz
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Supply Voltage: 12 v DC (10.8-17VDC)
- Compass Safe: 12" (300mm)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption max: 2.9A @ 13VDC with Full Backlight, Sonar on
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Recommended Fuse Rating: 5A
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Internal Storage: 8.0 GB Internal
- Viewing Angles: 80° top/bottom, 80° left/right
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
- Cartography included: C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Steering Modes: Course Heading Waypoint Power Steer
- Manouevres Turn Patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Digital Switching: Czone, Naviop
- Correction: DGPS, WAAS
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Waterproofrating: IPX7 with card door closed
- Languages: Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- PC Connectivity: None
- Autopilot: Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
- Video: Output: No Input: Composite video RCA - single channel via optional adaptor
- Backlight Color: Pure White LED
- N2K PGNs: Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only)
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Interface: Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
- NMEA 0183 Sentences supported: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
- Screen Brightness: >1200 Nits
- Update rate: 10 Hz
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Supply Voltage: 12 v DC (10.8-17VDC)
- Compass Safe: 12" (300mm)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption max: 2.9A @ 13VDC with Full Backlight, Sonar on
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Recommended Fuse Rating: 5A
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Internal Storage: 8.0 GB Internal
- Viewing Angles: 80° top/bottom, 80° left/right
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
- Cartography included: C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Steering Modes: Course Heading Waypoint Power Steer
- Manouevres Turn Patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Digital Switching: Czone, Naviop
- Correction: DGPS, WAAS
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Waterproofrating: IPX7 with card door closed
- Languages: Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- PC Connectivity: None
- Autopilot: Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
- Video: Output: No Input: Composite video RCA - single channel via optional adaptor
- Backlight Color: Pure White LED
- N2K PGNs: Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only)
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Interface: Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
- NMEA 0183 Sentences supported: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
- Size: 9 "
- Resolution: 1280 x 720
- Dimensions (L x W x H): 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)
- Net Weight: 4.14lb (2.00kg)
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
*Transducer sold separately **HDS LIVE 16/12 only
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D compatible*
- LiveSight real-time sonar compatible*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakes
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
*Transducer sold separately **HDS LIVE 16/12 only
- Size: 9 "
- Resolution: 1280 x 720
- Dimensions (L x W x H): 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)
- Net Weight: 4.14lb (2.00kg)
- Screen Brightness: >1200 Nits
- Update rate: 10 Hz
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Supply Voltage: 12 v DC (10.8-17VDC)
- Compass Safe: 12" (300mm)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption max: 2.9A @ 13VDC with Full Backlight, Sonar on
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Recommended Fuse Rating: 5A
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Internal Storage: 8.0 GB Internal
- Viewing Angles: 80° top/bottom, 80° left/right
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
- Cartography included: C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Steering Modes: Course Heading Waypoint Power Steer
- Manouevres Turn Patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Digital Switching: Czone, Naviop
- Correction: DGPS, WAAS
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Waterproofrating: IPX7 with card door closed
- Languages: Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- PC Connectivity: None
- Autopilot: Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
- Video: Output: No Input: Composite video RCA - single channel via optional adaptor
- Backlight Color: Pure White LED
- N2K PGNs: Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only)
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Interface: Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
- NMEA 0183 Sentences supported: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
- Screen Brightness: >1200 Nits
- Update rate: 10 Hz
- GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Supply Voltage: 12 v DC (10.8-17VDC)
- Compass Safe: 12" (300mm)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- SD Card Storage: 2 micro SD cards up to 32GB
- Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
- Power Consumption typical: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption min: 2.0A @ 13VDC with Full Backlight, Sonar on
- Power Consumption max: 2.9A @ 13VDC with Full Backlight, Sonar on
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Radar compatibility: 4G (Broadband) 3G (Broadband) Halo24 (Pulse Compression Dome Radar) Halo 3'/4'/6' (Open Array Pulse Compression Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Recommended Fuse Rating: 5A
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Internal Storage: 8.0 GB Internal
- Viewing Angles: 80° top/bottom, 80° left/right
- AIS: AIS Chart and Radar overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners
- Cartography included: C-MAP US Enhanced Basemap (AMER models) C-MAP World Background (ROW models) Navionics basemap (AMER and ROW models)
- Steering Modes: Course Heading Waypoint Power Steer
- Manouevres Turn Patterns: Course Heading Waypoint Power Steer U-Turn C-Turn Spiral Zigzag Square Lazy-S
- Digital Switching: Czone, Naviop
- Correction: DGPS, WAAS
- Approvals Compliance: FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Mounting Type: Gimbal Bracket Front Dash Flush Mount Rear Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructureScan3D
- Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
- Waterproofrating: IPX7 with card door closed
- Languages: Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- PC Connectivity: None
- Autopilot: Outboard Pilot MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway
- Video: Output: No Input: Composite video RCA - single channel via optional adaptor
- Backlight Color: Pure White LED
- N2K PGNs: Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-3 (USA only)
- Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Audio products
- Interface: Touchscreen: Full Multi-touch touchscreen Keypad: 8-way directional keypad Zoom +/- Exit Enter Menu Waypoint Power/Light
- NMEA 0183 Sentences supported: TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.
- Size: 9 "
- Resolution: 1280 x 720
- Dimensions (L x W x H): 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)
- Net Weight: 4.14lb (2.00kg)
- Standard Warranty: 2 Year + 3 additional years of upgrade options totaling 5 years
Alberni Power & Marine and Alberni Industrial Marine Supply Ltd. to be referred as APM is not responsible for, and expressly disclaims all liability for, damages of any kind arising out of use, reference to, or reliance on any information contained within the website, while the information contained within the site is periodically updated no guarantee is given that the information provided in this website is correct, complete, and up-to-date.
Product information is based on material received from suppliers. APM is very eager to provide to all clients a verification of its website content.
NOW $1,599.00
Limited Stock!
Model:
HDS-9 LIVE with No Transducer
Availability:
In stock
Condition:
New
Item#: 000-14421-001
Location:
Port Alberni, BC Canada
Request a Quote
Marine Electronics
Lowrance
HDS-9 LIVE with No Transducer
Important Sales Note
Outboard Motors: Sales within Designated Territory in Canada only. No Sales for the US available.
Boats: Cross Border Shipping Service for the US available.
Alberni Power & Marine - RPM Group
Province: British Columbia
3170 1st Ave N, Port Alberni V9Y 4C2
Phone: + 1 250-724-5722
Request By Phone
Marine Electronics
Lowrance
HDS-9 LIVE with No Transducer
Important Sales Note
Outboard Motors: Sales within Designated Territory in Canada only. No Sales for the US available.
Boats: Cross Border Shipping Service for the US available.
Alberni Power & Marine - RPM Group
Province: British Columbia
3170 1st Ave N, Port Alberni V9Y 4C2
Phone: + 1 250-724-5722
