2023 Liquid Metal 27 Salish Cabin Cruiser

Features of the Salish 27'3 Maquinna Series

• Length measured bow to transom 27' 3"

• Overall length (with outboard bracket) approx. 29' 8"

• Overall beam, 9' 5-3/4" (not including Tessilmare rubber trim)

• Reverse chine hull

• Bottom plate 1/4" 5086 marine grade aluminum

• Side plate 3/16" 5086 marine grade aluminum

• Side sheet stiffeners, 2 per side

• Lifting strakes, 2 per side

• Variable degree dead rise (20° at transom)

• Outboard bracket/hull extension with full width swim grid with easy access Armstrong hatch

• Longitudinal and transverse interior framing

• Insulation of hull with foam floatation

• 3/16" welded aluminum floors with cockpit drains to shed rainwater

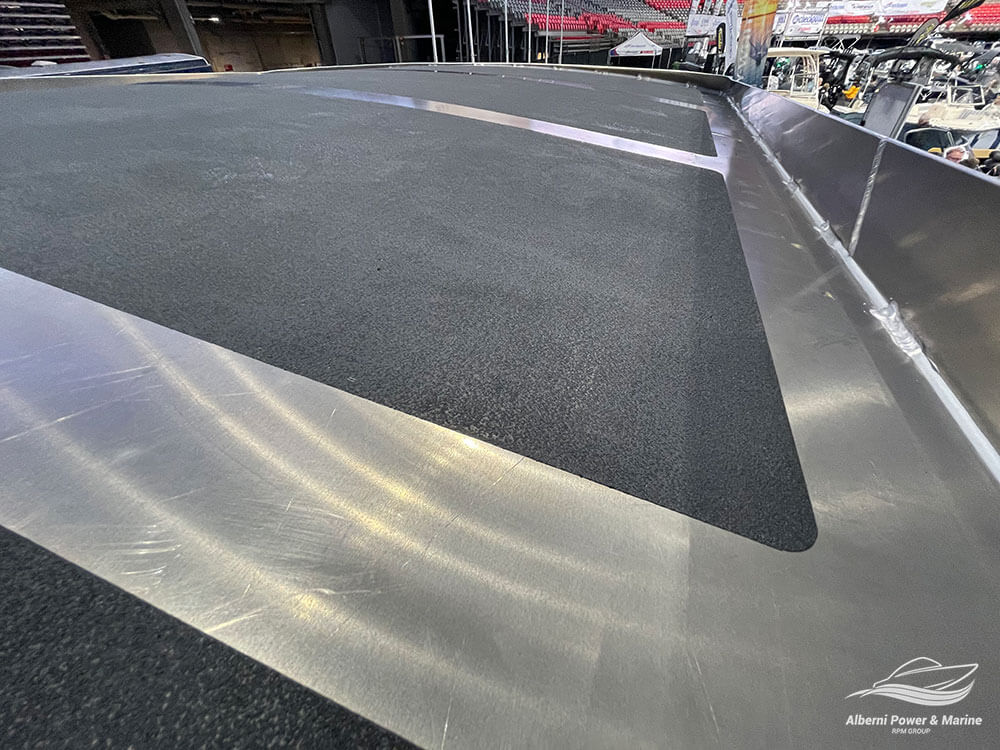

• All floors and side decks to have a non-skid finish (includes outboard bracket top)

• Bow and Stern eyes

• Mount for transducer and anode (bolt-on anode included)

• Drain with SS thread in plug

• Mounts for trim tabs (trim tabs not included as a standard)

Cabin

• Cabin to be forward leaning 2 piece windshield

• Interior headroom 6' 9" on centerline

• Insulated cabin top with fabric headliner finish

• All windows to be aluminum framed with clear glass

• Two windows per side, forward windows include sliders, no screens

• Two fixed windows on aft cabin wall with door hinged to port

• Interior and exterior grab rails


Standard interior package includes:

• - Grey/black head liner on cabin ceiling

• - Painted interior surfaces in textured Greystone Zolatone

• - Walls are not insulated

• - Black/grey fabric upholstery

• - Cabin top platform for mounting of electronics, lighting, etc.

Fuel System

Fuel cell capacity - approx. 580 Litres

• Single removable .187" fuel cell built under bolt down centerline decks
• Fuel tank is made to meet construction standards as set out in Transport Canada TP1332E
• Fuel system meets EPA regulations for fuel emissions using a pressure relief system
• Tank includes all fittings, plumbing, wiring and shut-off valve(s)

• A smaller access hatch above the tank is installed for ease of maintenance
• Fuel system includes forced air ventilation for below deck tank
• Tank(s) are complete with baffles and are pressure tested to 3.5 PSI

Vessel Components

• Small bow rails

• 7 weld on aluminum cleats

• Tessilmare 2-1/2" Bino Profile D-rubber along gunwale edge (black in color)

• Laz box with aluminum hatches along transom for storage of batteries and fuel filter

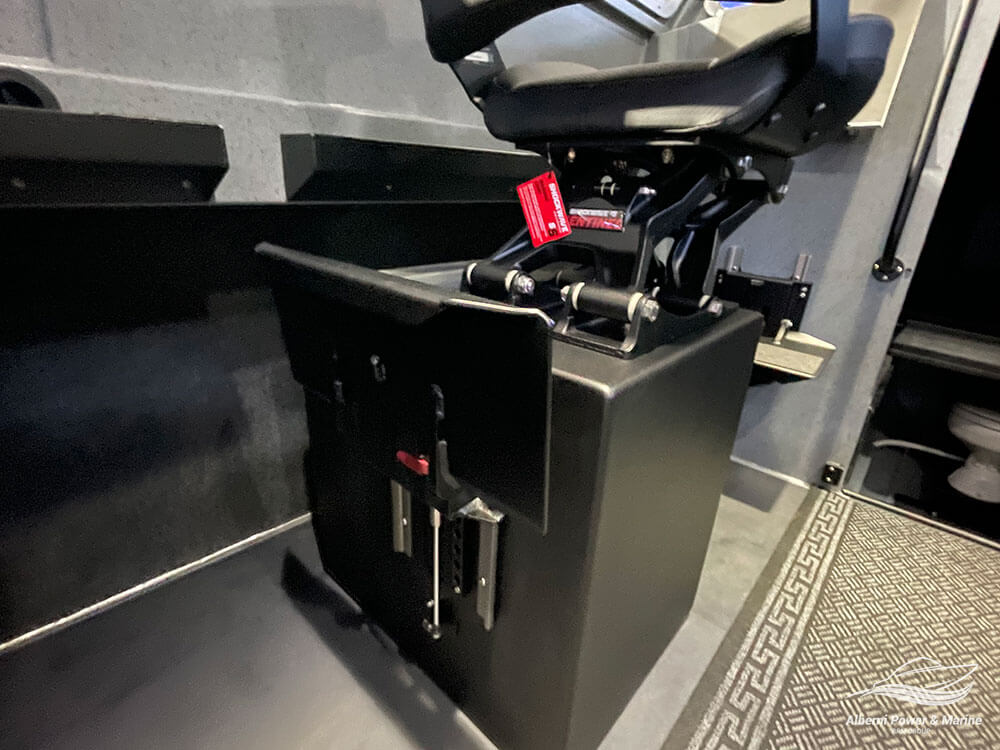

• Two Tempress Elite Hi-back helm seat on shockwave S5 pedestal (Helm includes fore/aft slide)

• Two bench seats lengthwise in cabin running aft of helm seats port/stb. Each bench has storage below

• Total seating for 8-10 passengers

• Side storage trays on aft deck

Electrical Package

• Triple 27 series batteries with boxes, switch and auto charge relay

• RIGID Bow LED lighting inset in hull

• LED Navigation lights (port, starboard and all around)

• Bilge pump - Rule 900GPH with 2000GPH back-up pump, with float switch and high water alarm

• Single 12V Plug-in on dash with USB port

• BlueSeas 8 position switch and fuse panels

• Ongaro stainless compact horn

• Windshield wipers, one for each forward window with washdown system

Cuddy Cabin

• V-Berth, including upholstery and headliner

• Side trays in cuddy

• Lewmar access hatch on cuddy top

• Sprayfoam insulation

• Custom upholstery package

Custom Interior / Paint Package

• Vinyl wrapped ceiling and wall panels in matte black

• Painted interior/exterior surfaces finished in matte black

• Black headliner, hull liner and upholstery for V-berth

• Decking is aluminum with non-skid coating

Optional Manufacturer and Dealer Upgrades: TBA

• Engine Guard upgrade (2" aluminum pipe engine guard)
